The Definitive B2B Guide to Smartwatch Connectors: Precision Engineering for Apple, Samsung, and Garmin

In the rapidly evolving landscape of wearable technology, the "bridge" between the device and the user—the strap connector—is no longer a mere accessory; it is a masterpiece of precision engineering. For watch manufacturers, high-volume wholesalers, and specialized e-commerce retailers, understanding the intricate technical nuances of these connectors is the difference between a high-return product line and a logistical nightmare.

At CONKLY, as a premier B2B watch strap manufacturer serving the European and North American markets, we recognize that our clients require more than just aesthetic appeal. They require technical certainty. This guide provides an exhaustive breakdown of the connector architectures for the industry’s "Big Three": Apple, Samsung, and Garmin.

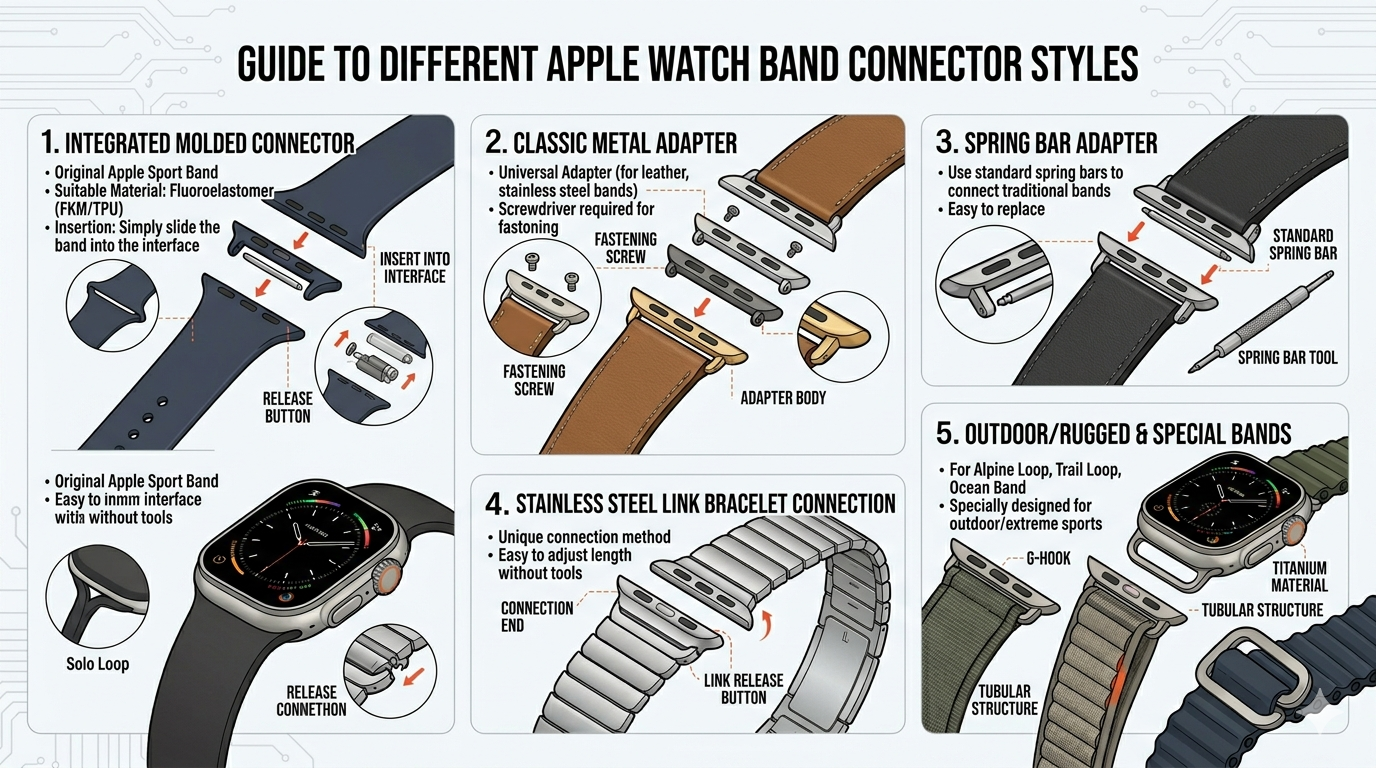

1. Apple Watch: The Proprietary Precision Standard

Apple’s ecosystem is defined by its closed-loop design. Unlike traditional horology, Apple utilizes a proprietary "slide-and-click" mechanism that eliminates the need for spring bars.

Connector Architecture

The Apple Watch connector (or lug) is a three-piece magnetic and mechanical locking system. It features three distinct "pills" on the insert—two spring-loaded rubberized cushions and a central metal locking tooth that secures the band into the watch casing.

Dimensional Breakdown & Compatibility

A common point of confusion for retailers is the cross-compatibility of sizes. As of 2026, the dimensions are categorized into two primary clusters:

• The Small Cluster (38mm / 40mm / 41mm): These three sizes share the exact same connector slot width. A strap engineered for a 38mm Series 1 will fit perfectly on a 41mm Series 9 or 10.

• The Large Cluster (42mm / 44mm / 45mm / 46mm / 49mm): This is where CONKLY’s precision manufacturing shines. While the cases have grown, the internal rail dimensions remain backward compatible.

  • The Ultra Factor: The 49mm Apple Watch Ultra requires a wider "shoulder" on the connector to maintain visual continuity with the ruggedized case. While a 45mm connector will lock into an Ultra, it may leave a slight aesthetic gap. CONKLY’s dedicated Ultra FKM Straps use a beefed-up connector housing to ensure a seamless flush fit.

B2B Insight

For wholesalers, the "Large Cluster" is currently the highest-volume SKU. Ensuring your inventory uses 304L stainless steel for the locking tooth is critical to prevent mechanical failure—a standard CONKLY adheres to for all export-grade shipments.

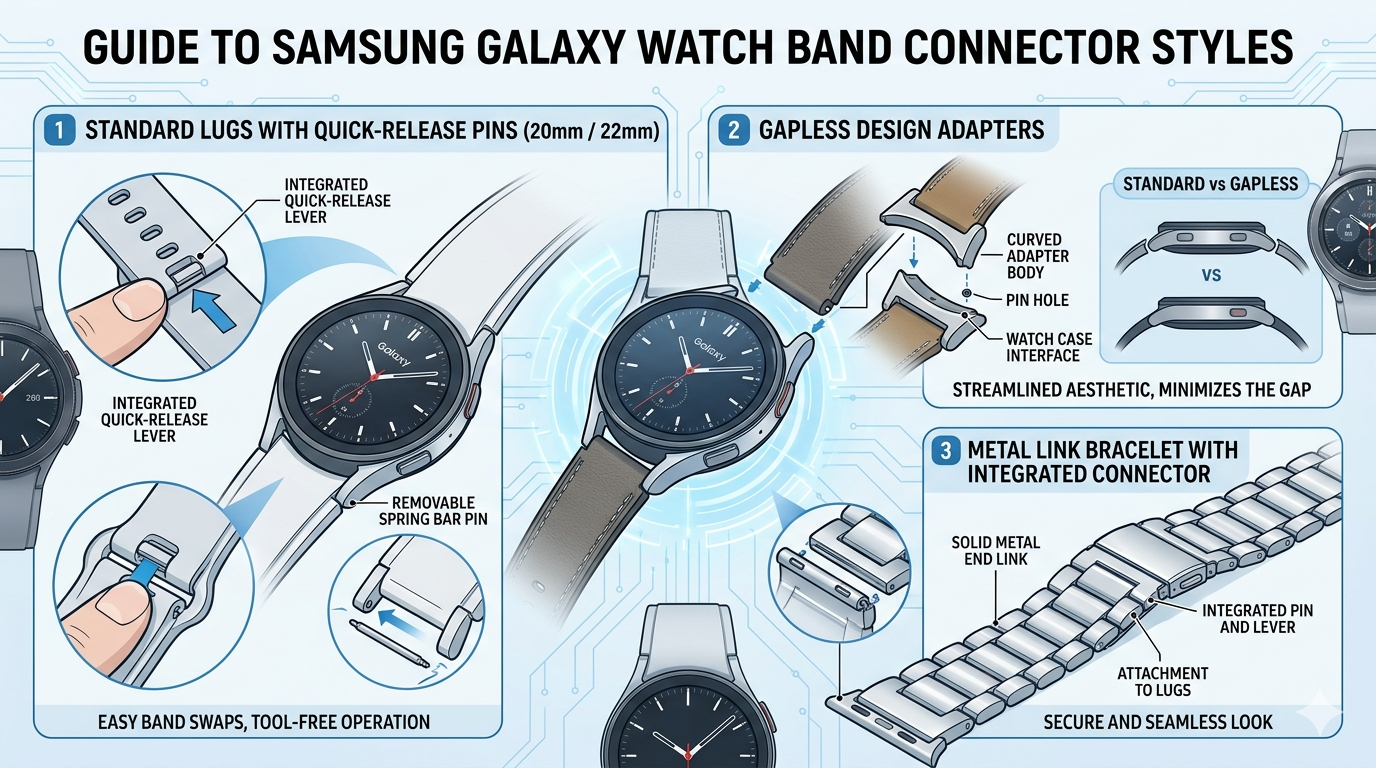

2. Samsung Galaxy Watch: The Transition to One-Click

Samsung has historically been the champion of the "Traditional Lug," but recent iterations have introduced the "One-Click" system to compete with Apple’s ease of use.

The 20mm Standard (Watch 4 through Watch 7)

Most Galaxy Watch models (Standard, Classic, and Pro) utilize a 20mm lug width. However, the connector style has evolved:

• Traditional Quick-Release: Uses a standard 20mm spring bar with a small handle.

• One-Click System: Introduced with the Galaxy Watch 6, this allows users to press a button on the strap to retract the pins.

The Galaxy Watch Ultra: A New Paradigm

Samsung’s latest "Ultra" entry has abandoned the traditional 20mm lug in favor of a proprietary Dynamic Lug System. This is a critical distinction for B2B buyers. You cannot use a standard 20mm FKM band on the Samsung Ultra. It requires a specific molded connector that mimics the integrated look of the watch body.

Connector Variations:

• Gap-less Design: High-end retailers prefer "Gap-less" connectors for Samsung. These are curved at the ends to follow the contour of the watch’s circular case, eliminating the daylight between the strap and the watch.

• Straight End: Common for mesh and metal bracelets, offering universal fitment but a less integrated look.

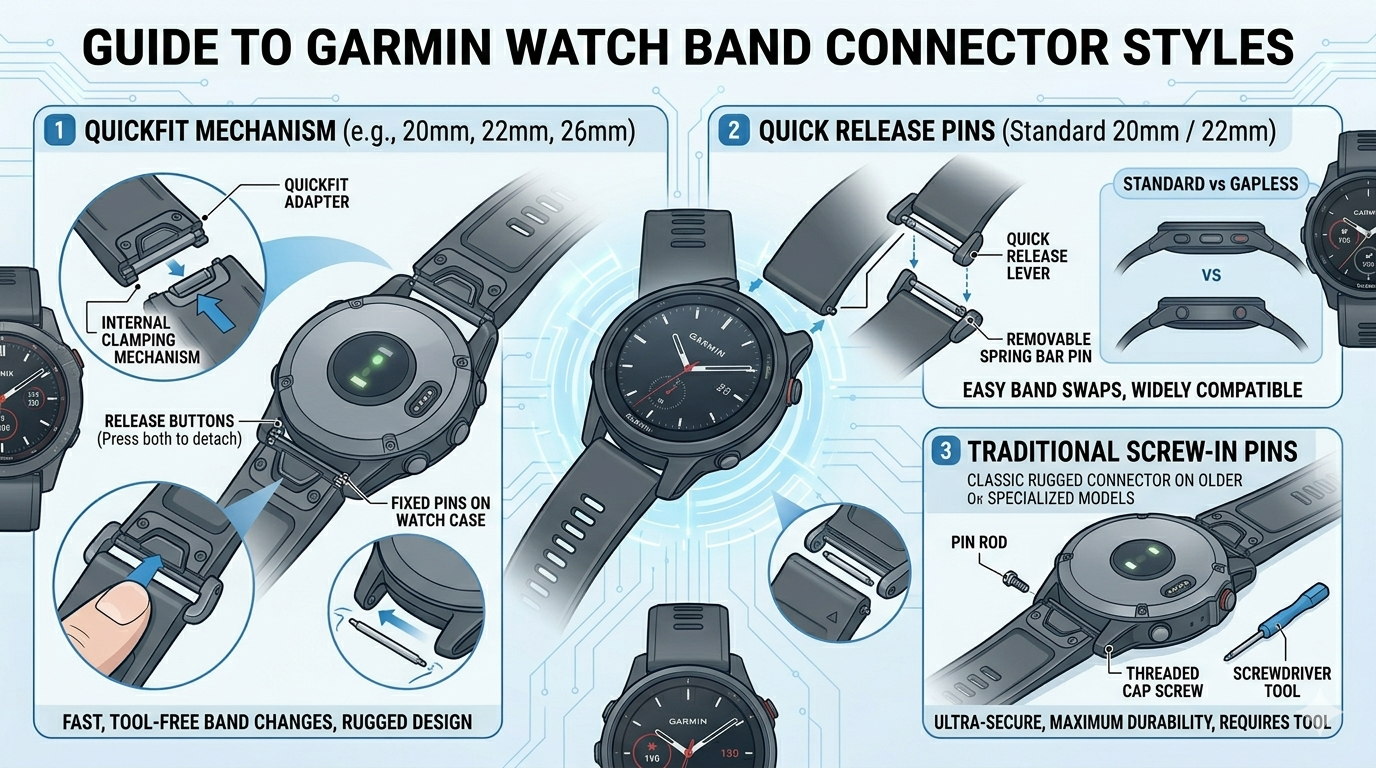

3. Garmin: The QuickFit™ Ecosystem for Professionals

Garmin caters to the professional athlete and outdoor enthusiast, meaning their connectors must withstand extreme G-forces and vibrations.

QuickFit™ Technology

Garmin’s proprietary QuickFit™ system is perhaps the most robust in the industry. It involves a "clipping" mechanism that snaps onto a fixed, non-removable bar on the watch lug.

Specific Sizes for Specific Tiers

Garmin connectors are strictly categorized by width, and they are not interchangeable:

• 20mm QuickFit: Designed for the "S" series (e.g., Fenix 7S, Epix Pro 42mm).

• 22mm QuickFit: The industry standard for the flagship Fenix series (Fenix 7, 8) and Forerunner 900 series.

• 26mm QuickFit: Reserved for the massive Fenix X series, Tactix, and Descent diving watches.

Material Integration

Because Garmin users often engage in high-impact activities, CONKLY recommends FKM (Fluoroelastomer) or High-Density Nylon for these connectors. The FKM material is chemically resistant to sweat and salt water, while our 26mm connectors feature reinforced tension springs to ensure the watch remains secure during tactical use.

4. Material Science: Why FKM is Dominating the B2B Market

For the smart wearable e-commerce sector, FKM Watch Bands have overtaken silicone as the "Gold Standard."

• Technical Superiority: Unlike silicone, FKM does not attract dust (anti-static) and has a much higher density.

• Durability: It is resistant to UV rays, high temperatures, and oils. For a B2B client, this means fewer returns and higher customer satisfaction.

• Connector Synergy: FKM allows for "Overmolding." At CONKLY, we mold the strap material around the connector inserts for Apple and Samsung, creating a bond that is virtually impossible to break.

5. Summary Table for Procurement

6. Conclusion: The CONKLY Advantage

For watch manufacturers and wholesalers in Europe and North America, the details are the product. A connector that is $0.1\text{mm}$ off-spec can lead to a catastrophic failure of a $1000$ dollar device.

At CONKLY (https://conkly.com), we specialize in the B2B supply of high-performance FKM, Leather, and Stainless Steel bands. Our manufacturing process involves rigorous tolerance testing for every connector type—ensuring that whether you are ordering 1,000 units for an OEM project or stocking an e-commerce storefront, the fit is perfect every time.

Visit CONKLY.com to request our latest 2026 B2B Catalog and technical specification sheets.
